Produktbeskrivning
Finally! A Shutter module with inverting polary output!

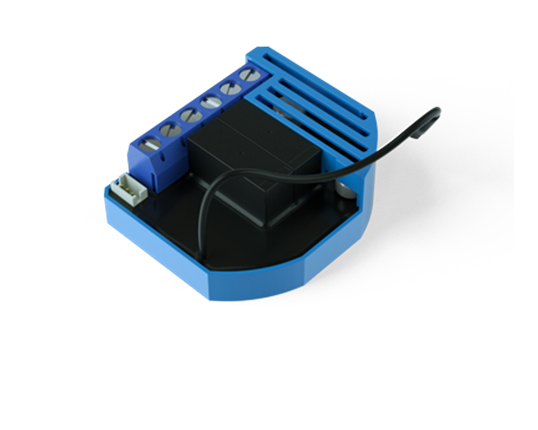

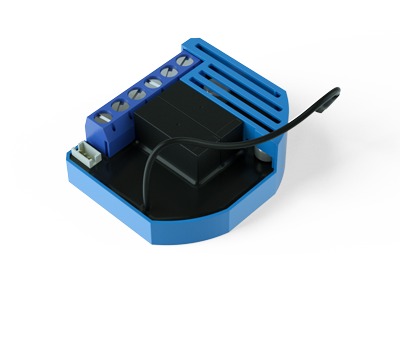

Flush shutter DC module with inverting power polarity is used to control 12-24VDC motor of blinds, rollers, shades, venetian blinds, windows, etc.
Flush shutter DC module with inverting power polarity is used to control 12-24VDC motor of blinds, rollers, shades, venetian blinds, windows, etc.
Specifikationer
- Power supply: 12-24VDC +/-10%
- Rated load current: 2A
- Overcorrect protection: 5A
- Output circuit power of DC output (resistive load): 48W (24VDC)
- Power measurement accuracy: +/-5%
- Digital temperature sensor range (sensor must be ordered separately): -50 ~ +125°C
- Operation temperature: -10 ~ +40°C
- Distance up to 30 m indoors (depending on building materials) (Normal 5-15m)
- Dimensions (WxHxD): 41,8x36,8x15,4mm
- Weight: 28g
- Electricity consumption: ca. 0,3W
- For installation in boxes Ø = 60mm or 2M
- Switching: H bridge
Fyndvara: | Kundretur |
---|---|
Fyndvara: | Bra skick |
Z-Wave Plus: | Ja |
